UL 1558 Switchgear

Custom UL 1558 switchgear engineered to fit existing infrastructure, reduce modernization risk, improve reliability, and support future expansion in critical power distribution applications.

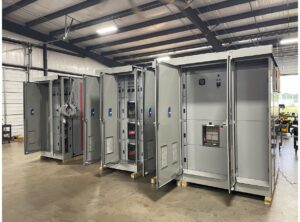

UL 1558 Switchgear Manufactured by CPS

UL 1558 switchgear projects are rarely driven by the need for new equipment alone. More often, they begin when an existing electrical distribution system no longer supports the facility’s operational requirements. Aging switchgear, increasing electrical loads, higher available fault current levels, obsolete components, generator integration projects, utility service upgrades, and facility expansions all create situations where existing equipment becomes a concern.

Coastal Power Systems manufactures custom UL 1558 switchgear assemblies up to 8,000A and 600 VAC for facilities that require reliable, maintainable, and expandable power distribution systems. These systems can be configured for utility service entrances, Main-Tie-Main applications, double-ended substations, generator integration projects, replacement sections, and custom industrial applications.

Our UL 1558 Switchgear Features

600A–4000A ratings available, with selected UL 1558 configurations available up to 8,000A
600 VAC low-voltage switchgear applications
100KAIC configurations available
Circuit breakers with advanced trip units
Trip units that periodically check continuity of internal connections and systems
Selected trip units with 1% system metering accuracy
Optional integral automatic transfer capability built into the trip unit
Four-high circuit breaker arrangements
NEMA 1 and NEMA 3R configurations available
RELT / maintenance mode, digital metering, Bluetooth capability, remote operation, and available control options
Medium-voltage relay integration
High-resistance ground, thermal sensing, and other available options
Main-Tie-Main, single substation, and double-ended substation configurations
Custom-built sections designed to fit application requirements, space constraints, and existing footprints

What Problems Is UL 1558 Switchgear Designed to Solve?

Most switchgear purchasing decisions are ultimately driven by risk management. Engineers are not simply selecting breakers and bus systems. They are attempting to minimize the probability and consequences of electrical failures while creating a system that can be maintained and expanded throughout its service life. This objective becomes more challenging as facilities grow, electrical loads increase, and equipment ages.

One of the most common challenges involves aging switchgear infrastructure. Many facilities continue operating equipment that was installed thirty or forty years ago. While these systems may still function, replacement parts become increasingly difficult to obtain, maintenance costs increase, and reliability concerns grow. In addition, electrical systems often evolve significantly over time as utility fault current levels increase, production equipment expands, backup generators are added, and protection requirements change.

UL 1558 switchgear addresses these challenges by providing a platform that supports modern protection systems, monitoring capabilities, maintenance strategies, and future expansion requirements. More importantly, custom-engineered switchgear allows facilities to modernize electrical infrastructure without completely redesigning existing electrical rooms or distribution systems.

Why Engineers Choose Custom UL 1558 Switchgear

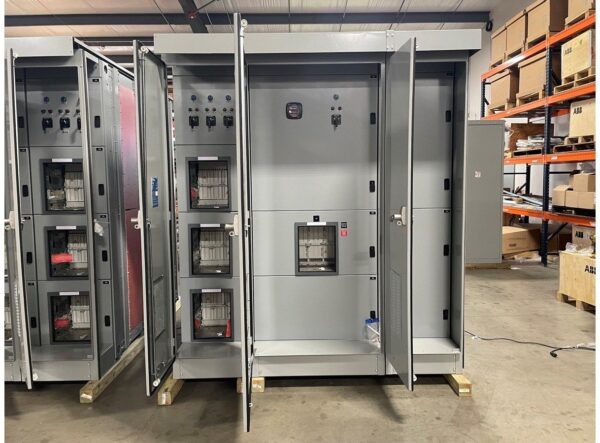

UL 1558 Switchgear by Coastal Power Systems — UL 1558 Switchgear | Coastal Power Systems

One of the biggest misconceptions about switchgear projects is the belief that standard catalog equipment can solve every problem. While standard equipment may work well for many new construction projects, existing facilities often present challenges that require a more customized approach. Physical space limitations, existing bus arrangements, utility requirements, generator integration needs, protection schemes, and operational constraints frequently require modifications that extend beyond standard offerings.

Consider a refinery replacing an aging switchgear lineup during a planned outage. The existing equipment may be located in an electrical room that cannot easily be expanded. Bus connections may need to align with existing infrastructure. Shutdown windows may be measured in days rather than weeks. In this situation, the ability to design switchgear around the facility becomes far more valuable than selecting a standard lineup that requires extensive modifications to the surrounding infrastructure.

Coastal Power Systems engineers UL 1558 switchgear for these types of applications. Custom configurations allow facilities to address operational requirements, physical constraints, and long-term reliability objectives without compromising overall system performance. From an engineering perspective, customization is often less about adding features and more about eliminating risks that could affect installation, operation, or future expansion.

How Advanced Trip Units Improve Reliability

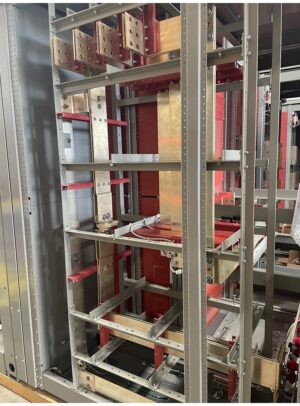

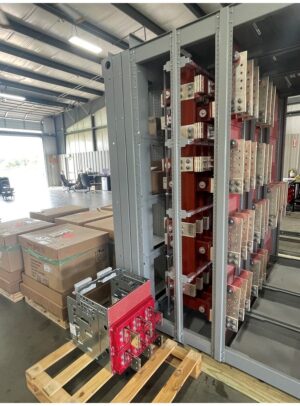

UL 1558 Switchgear Skeleton — UL 1558 Switchgear | Coastal Power Systems

One of the most significant developments in modern switchgear design has been the evolution of electronic trip units. Historically, protective devices served a relatively simple function. They detected fault conditions and opened breakers when necessary. Today’s advanced trip units perform many additional tasks that directly support reliability, maintenance, and operational decision-making.

Selected trip units available within Coastal’s UL 1558 switchgear periodically verify the continuity of internal connections and critical system components. This capability addresses a common reality of electrical systems: most failures do not occur suddenly. Instead, they develop gradually as connections loosen, components deteriorate, environmental conditions affect equipment, or operating stresses accumulate.

For facilities where downtime is expensive, early detection provides significant value. Maintenance personnel gain visibility into system conditions, allowing corrective actions to be scheduled during planned outages rather than emergency shutdowns. Engineers also gain greater confidence that critical protection systems will operate as expected when abnormal conditions occur.

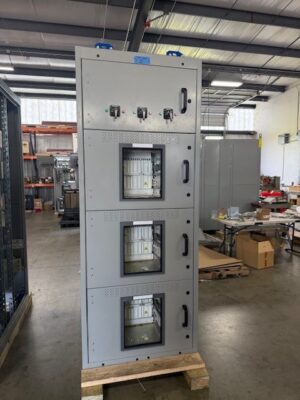

How Space Constraints Influence Switchgear Design

Space limitations are one of the most overlooked challenges in switchgear projects. New construction projects often provide engineers with greater flexibility because electrical rooms can be designed around equipment requirements. Existing facilities rarely have that luxury. Engineers working on modernization projects frequently discover that available floor space becomes one of the most important design constraints.

Coastal’s UL 1558 switchgear offers multiple section width options, including four-high circuit breaker arrangements within a 15-inch section. This capability allows engineers to maximize functionality while minimizing overall lineup length. The benefit extends beyond simply saving floor space. Smaller lineups can reduce installation complexity, simplify retrofit projects, and help facilities avoid costly building modifications.

Why Metering Accuracy Matters

Electrical metering is often treated as a secondary consideration during switchgear procurement. However, facilities increasingly depend on electrical data to support operational decisions, energy management initiatives, predictive maintenance programs, and troubleshooting efforts. The value of this information continues to increase as facilities adopt digital monitoring systems and data-driven maintenance strategies.

Selected trip units within Coastal’s UL 1558 switchgear provide metering accuracy of up to one percent. This level of accuracy supports applications ranging from load analysis and energy management to power quality investigations and system performance evaluations. Engineers responsible for capacity planning often rely on accurate electrical data to determine when expansions are required.

Where UL 1558 Switchgear Delivers the Greatest Value

While UL 1558 switchgear is used across many industries, the business case for investing in custom-engineered switchgear becomes strongest when downtime carries significant operational consequences. In these environments, the purchase price of the equipment is often a relatively small component of the overall financial exposure associated with an electrical failure.

Data Centers

Data centers often prioritize redundancy, maintainability, generator integration, and coordinated power distribution systems that support continuous operations.

Petrochemical Facilities

Petrochemical facilities and refineries typically focus on reliability, selective coordination, maintenance accessibility, and reduced process interruption risk.

Utilities

Utilities often require specialized protection schemes, service-specific configurations, and switchgear designed around local operating practices.

Power Generation

Power generation facilities may need customized relay integration, load management capabilities, and sophisticated control systems.

Oil & Gas

Oil and gas facilities need switchgear that supports demanding environments, varying load profiles, remote operating conditions, and limited maintenance windows.

Industrial Manufacturing

Manufacturing plants depend on reliable switchgear to reduce production interruptions, support equipment expansion, and improve long-term system maintainability.

Engineering Considerations for UL 1558 Switchgear Specifications

Successful switchgear projects begin long before equipment is manufactured. The most expensive switchgear problems are often specification problems rather than manufacturing problems. Engineers who focus exclusively on amperage ratings, breaker sizes, and physical dimensions may overlook issues that significantly affect reliability and lifecycle costs.

Available fault current should always be one of the first considerations. Utility upgrades, transformer replacements, and facility expansions can increase fault current levels over time. If equipment ratings are inadequate, the consequences during a fault event can be severe. Engineers should evaluate both current conditions and reasonably anticipated future conditions when establishing equipment requirements.

Future expansion deserves equal attention. Many facilities underestimate how much their electrical requirements will change over the next twenty years. Additional production equipment, process changes, new buildings, backup generators, and increased capacity demands can all affect the electrical system. Including spare breaker positions, additional bus capacity, and expansion provisions during the initial project often costs significantly less than modifying the switchgear after installation.

How Reliability Features Reduce Operational Risk

Reliability is often discussed as though it were a single equipment characteristic. In reality, reliability is the result of numerous engineering decisions working together. Equipment construction, protection systems, monitoring capabilities, maintenance practices, and operating procedures all influence how a switchgear lineup performs throughout its service life.

Advanced trip units represent one important element of this strategy. By continuously monitoring internal connections and system health, they provide early visibility into conditions that might otherwise remain undetected. Thermal sensing capabilities add another layer of protection by identifying abnormal temperatures that may indicate loose connections, overloaded components, or deteriorating equipment.

Maintenance mode functionality can help reduce arc flash incident energy during servicing activities, improving worker safety while supporting maintenance operations. Remote operation capabilities further reduce risk by allowing certain switching activities to be performed from safer locations. Collectively, these features support a more proactive approach to reliability management.

Why Procurement Teams Should Look Beyond Initial Equipment Cost

Procurement professionals are often responsible for balancing technical requirements, project schedules, and budget constraints. While purchase price remains an important consideration, focusing exclusively on initial cost can create unintended consequences. The true cost of switchgear ownership includes maintenance requirements, future modifications, spare parts availability, outage exposure, operational flexibility, and equipment lifespan.

One example involves modernization projects in existing facilities. A standard switchgear lineup may appear less expensive initially, but if it requires extensive building modifications, longer outage durations, or significant changes to existing infrastructure, the overall project cost may increase substantially. Conversely, a custom-engineered solution designed around the facility’s constraints may reduce construction costs, shorten installation schedules, and lower operational risk.

What Independent Distributors Need From a Switchgear Manufacturing Partner

Independent distributors frequently encounter projects that extend well beyond standard catalog equipment. Consulting engineers, EPC contractors, utilities, and industrial facilities often require customized solutions that address specific operational, physical, or technical requirements. In these situations, the distributor’s ability to provide engineering support and application-specific expertise becomes a competitive advantage.

Access to custom UL 1558 switchgear capabilities allows distributors to support projects involving generator integration, replacement sections, Main-Tie-Main systems, double-ended substations, and brownfield modernization efforts. Equally important, engineering support can help distributors navigate technical discussions during specification reviews and project development.

Why UL 1558 Remains Important for Critical Power Distribution

Electrical distribution systems operate in environments where equipment failure can have significant consequences. Production interruptions, customer outages, equipment damage, safety incidents, and environmental impacts can all result from electrical system failures. Because of these risks, engineers depend on standards that establish clear performance and construction requirements rather than relying solely on manufacturer claims.

UL 1558 remains the benchmark standard for low-voltage metal-enclosed switchgear because it establishes requirements for construction, testing, performance, and safety. These requirements help engineers evaluate equipment using objective criteria while providing confidence that the switchgear has been designed and tested for demanding power distribution applications.

Supporting Reliability Beyond the Switchgear Lineup

One of the most common mistakes organizations make is viewing switchgear as an isolated piece of equipment. In reality, switchgear is only one component within a larger electrical distribution system. The performance of that system depends on numerous factors, including short-circuit studies, protective coordination studies, arc flash analysis, commissioning procedures, maintenance programs, and operator training.

Facilities that achieve the highest levels of electrical reliability typically approach power distribution as an ongoing process rather than a one-time equipment purchase. They invest in engineering studies to verify system performance, conduct periodic maintenance activities to identify developing problems, and use monitoring technologies to improve visibility into system health.

Request a UL 1558 Switchgear Review

Whether you are planning a utility service entrance project, replacing aging switchgear, integrating generators, expanding facility capacity, or evaluating options for a brownfield modernization effort, Coastal Power Systems can help you review the application before finalizing equipment selections.

Frequently Asked Questions

What makes UL 1558 switchgear different from UL 891 switchboards?

Although both products distribute electrical power, they are typically used in different applications and are designed around different priorities. UL 1558 switchgear is generally selected for critical power distribution systems that require higher fault-current capabilities, drawout breaker technology, advanced protection systems, improved maintenance accessibility, and greater operational flexibility.

UL 891 switchboards are commonly used in commercial and industrial distribution systems where these capabilities may not be necessary. Engineers evaluating both options should consider fault current levels, maintenance requirements, future expansion plans, and operational criticality rather than assuming the two products are interchangeable.

When does custom-engineered switchgear make more sense than standard equipment?

Custom-engineered switchgear often becomes the preferred solution when facilities face physical space limitations, existing bus arrangements, specialized protection requirements, generator integration projects, or modernization efforts involving aging infrastructure.

In many brownfield projects, standard equipment may technically satisfy the electrical requirements but create installation challenges that significantly increase project costs. Custom configurations allow engineers to address operational constraints while minimizing disruption to existing infrastructure and reducing installation risk.

How do advanced trip units contribute to reliability?

Modern trip units provide significantly more functionality than traditional overcurrent protection. In addition to protecting equipment during abnormal operating conditions, selected trip units can continuously monitor system health, verify continuity of critical internal connections, support communications functions, and provide accurate metering information.

These capabilities help identify developing issues before they result in equipment failures or operational interruptions. For facilities where downtime carries significant consequences, early detection can support more effective maintenance planning and improve overall system reliability.

Why is maintenance mode important?

Maintenance mode is designed to help reduce arc flash incident energy during servicing activities. Electrical safety programs increasingly focus on reducing worker exposure to energized equipment and minimizing the consequences of potential arc flash events.

Maintenance mode can support these objectives by modifying protection settings during maintenance activities while allowing facilities to continue operating safely. Engineers evaluating switchgear for critical facilities should consider arc flash mitigation strategies during the design phase rather than attempting to add them later.

Can UL 1558 switchgear support future facility expansion?

Yes. One of the primary advantages of properly engineered switchgear is its ability to accommodate future growth. Spare breaker positions, additional bus capacity, expansion sections, and flexible protection schemes can all support future electrical requirements.

Because switchgear often remains in service for decades, planning for expansion during the initial design phase is usually far more economical than modifying the system after installation.
